2022 ARGO Xplorer 90
$2,974.00*
*Price does not include $275.00 in destination charges.
Key Features
New/Used New
Availability
In Stock
LocationGWS Outdoors
Primary ColorWhite
Stock #
178
VIN
RFBLE07S0NB440546
Condition
Excellent
Product Features
Description

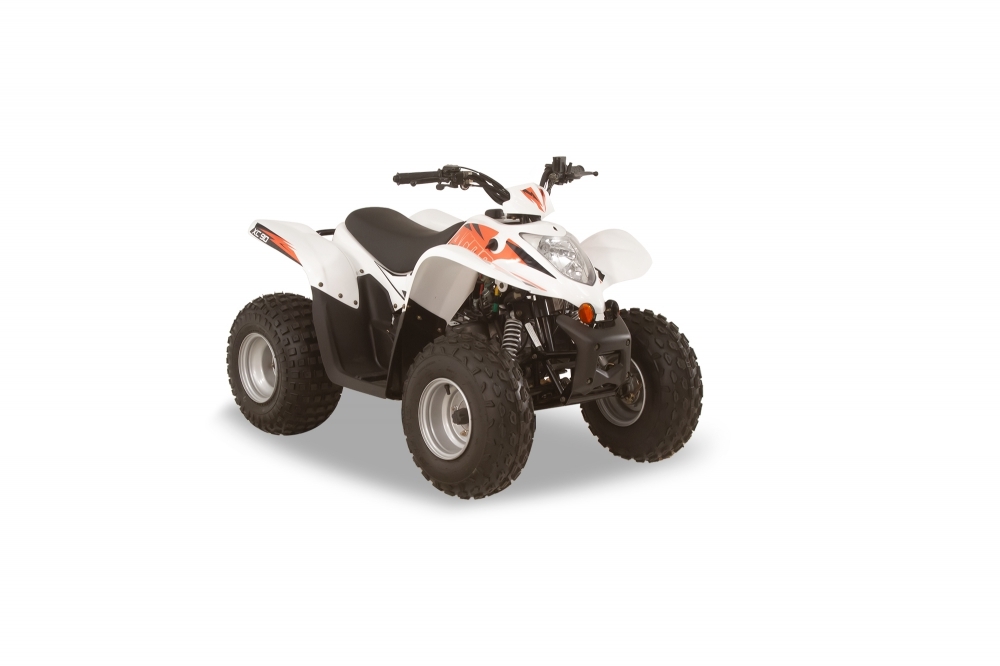

Introducing the all-new Xplorer XC 90 youth ATV. This model is engineered for kids 12 years of age and up to provide lifelong memories. The XC 90 has many safety features straight from the factory, including an adjustable throttle for limiting speed and a handlebar tether cord adults can pull as a remote shut-off switch to stop the 89cc fan-cooled engine. This is the perfect youth platform to teach the fundamentals of riding and to learn the rules of nature's endless playground.
Specifications
- Displacement: 90cc
- Engine Stroke: 4-Stroke
- Cylinder Arrangement: SOHC Single-Cylinder
- Valve Configuration: 2 Valve
- Fuel System: Carburetor
- Cooling System: Fan
- Bore X Stroke: 47 x 51.8 mm
- Compression Ratio: 10:01
- Start Method: Electric Start/Kick Start
- Ignition: CDI
- Over Ride Button: N/A
- Transmission Type: CVT Automatic
- Final Drive: Chain Drive
- Differential Function: Front Differential
- Drive System Type: 2WD
- Electric Diff Lock: N/A
- Gear Selection: F/N/R
- Reverse: Yes
- Engine Braking System (Ebs): N/A
- Length: 57 in. (1448 mm)
- Width: 36 in. (914 mm)
- Height: 37.9 in. (963 mm)
- Seat Height: 25.5 in. (650 mm)
- Ground Clearance: 7.25 in. (184 mm)
- Wheelbase: 37.9 in. (963 mm)
- Towing Capacity: N/A
- Dry Weight: 260.1 lb. (118 kg)
- Wet Weight: 274.9 lb. (124.7 kg)
- Fuel Tank Capacity: 1.4 gal. (5.3 L)
- Rider Capacity: 1
- Suspension - Front: Independent Single A-Arm
- Suspension - Rear: Swing Arm
- Suspension Travel - Front: 2.8 in. (71 mm)
- Suspension Travel - Rear: 2.9 in. (74 mm)
- Brake - Front: Dual Drum
- Brake - Rear: Hydraulic Disc
- Foot Brake: N/A
- Tire Size (Front): At18X7-8
- Tire Size (Rear): At18X9-8
- Wheel Rim: Steel
- Electric Power Steering: No
- Battery: 12V Lead Acid
- Front Rack: N/A
- Rear Rack: N/A
- Front Bumper: Standard
- Hitch: N/A
- Winch: N/A
- Hand Guard: N/A
- 12V Charger: N/A
- Daylight Strip: N/A
- Skid Plate: Plastic
- Passenger Handles: N/A
- Passenger Backrest: N/A
- Storage: N/A
- Front Brush Guard: N/A
- Usb Charging Port: N/A
- Rear Box Storage: N/A
- Instrumentation: Gear Position Indicator
- Lighting: Single 35W High/Low Beam, Single With Brake Light
- Color: White
Engine
| Displacement | 90cc |
| Cylinders | SOHC Single-Cylinder |
| Bore x Stroke | 47 x 51.8 mm |
| Engine Cooling | Fan |
| Fuel System | Carburetor |
| Starting System | Electric Start/Kick Start |
Chassis
| Front Travel | 2.8 in. (71 mm) |
| Front Suspension | Independent Single A-Arm |
| Front Brake Type | Dual Drum |
| Front Tires | At18X7-8 |
| Rear Suspension | Swing Arm |
| Rear Travel | 2.9 in. (74 mm) |
| Rear Brake Type | Hydraulic Disc |
| Rear Tires | At18X9-8 |
Dimensions/Capacities
| Dry Weight | 260.1 lb. (118 kg) |
| Fuel Capacity | 1.4 gal. (5.3 L) |
| Ground Clearance | 7.25 in. (184 mm) |
| Machine Dimensions (LxWxH) | 57 in. (1448 mm) x 36 in. (914 mm) x 37.9 in. (963 mm) x 25.5 in. (650 mm) |
| Wheelbase | 37.9 in. (963 mm) |
Drive Train
| Drive Train | 2WD |
| Final Drive | Chain Drive |
| Transmission | CVT Automatic |
General
| Lighting | Single 35W High/Low Beam, Single With Brake Light |
| Colors | White |
