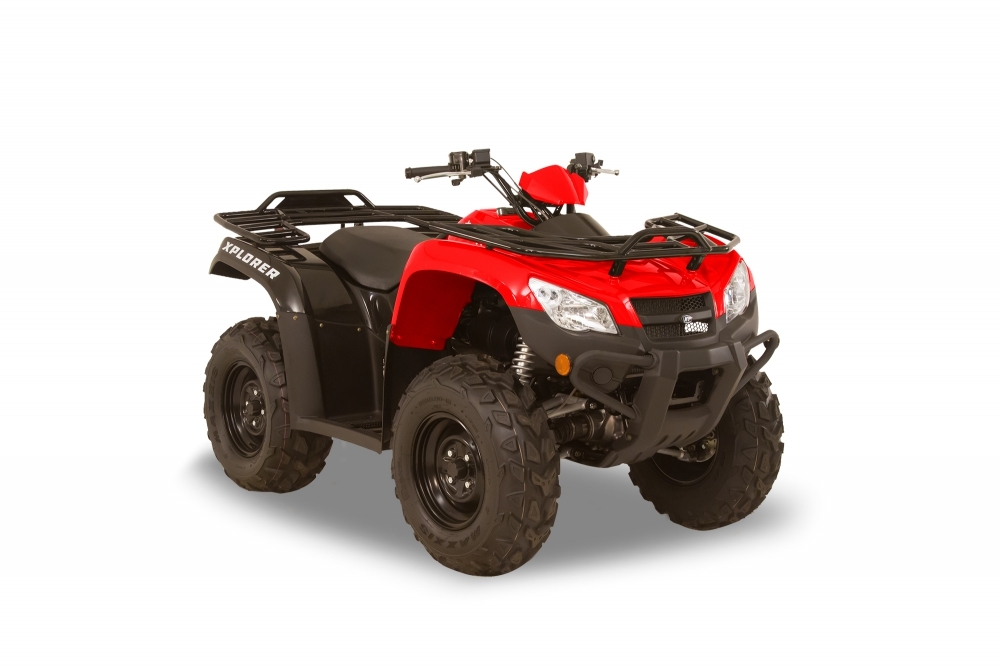

2022 ARGO Xplorer XR 500
$6,999.00*
*Price does not include $550.00 in destination charges.
Key Features
New/Used New
Availability
In Stock
LocationGWS Outdoors
Primary ColorRed
Stock #
248
VIN
RFBLR33U6NBE70229
Condition
Excellent
Product Features
Description
The ARGO team has been on a mission since debuting the ARGO Xplorer XR Series five short years ago to offer a better ATV, period. Better horsepower. Better suspension. Better comfort. Better, well, you get it. The all-new 2022 XR 500 adds a fresh laundry list of enhancements, including the new 443cc liquid-cooled engine with EFI, new performance clutching and class-leading suspension. We don't subtract essential features, like engine breaking, to save a few bucks; we make everything better. Go see why an ARGO XR 500 is a better fit for you.
Specifications
- Displacement: 443cc
- Engine Stroke: 4-Stroke
- Cylinder Arrangement: SOHC Single-Cylinder
- Valve Configuration: 4 Valve
- Fuel System: EFI
- Cooling System: Liquid
- Bore X Stroke: 89 X 71.2 mm
- Compression Ratio: 9.1:1
- Start Method: Electric Start
- Ignition: ECU
- Over Ride Button: Standard
- Transmission Type: CVT Automatic
- Final Drive: Shaft Drive
- Differential Function: Front Differential
- Drive System Type: 2WD/ 4WD /Lock
- Electric Diff Lock: Yes
- Gear Selection: H/L/N/R
- Reverse: Yes
- Engine Braking System (Ebs): Standard
- Length: 83.6 in. (2,123 mm)
- Width: 43.4 in. (1,102 mm)
- Height: 46.9 in. (1,191 mm)
- Seat Height: 33.2 in. (843 mm)
- Ground Clearance: 10.5 in. (267 mm)
- Wheelbase: 47.9 in. (1,217 mm)
- Towing Capacity: 1,050 lb. (477 kg)
- Dry Weight: 604.0 lb. (274 kg)
- Wet Weight: 647.6 lb. (293.7 kg)
- Fuel Tank Capacity: 4.7 gal. (17.8 L)
- Rider Capacity: 1
- Suspension - Front: Independent Double A-Arm
- Suspension - Rear: Independent Double A-Arm
- Suspension Travel - Front: 7 in. (180 mm)
- Suspension Travel - Rear: 7 in. (180 mm)
- Brake - Front: Dual Hydraulic ??Disc
- Brake - Rear: Hydraulic ?Disc
- Foot Brake: Standard
- Tire Size (Front): At24X8-12 (Kenda)
- Tire Size (Rear): At24X10-12 (Kenda)
- Wheel Rim: Steel
- Electric Power Steering: No
- Battery: 12V AGM
- Front Rack: 120 lb. (54.5 kg)
- Rear Rack: 240 lb. (109 kg)
- Front Bumper: Standard
- Hitch: Standard/2 in. Receiver
- Winch: Accessory
- Hand Guard: Accessory
- 12V Charger: DC 12V 10A 120W
- Daylight Strip: N/A
- Skid Plate: Plastic
- Passenger Handles: No
- Passenger Backrest: No
- Storage: N/A
- Front Brush Guard: Accessory
- Usb Charging Port: N/A
- Rear Box Storage: N/A
- Instrumentation: DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/Lock INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
- Lighting: Dual 8W High/Low Beam, Single With Brake Light
- Colors: Red or Green
Engine
| Displacement | 443cc |
| Bore x Stroke | 89 X 71.2 mm |
| Cylinders | SOHC Single-Cylinder |
| Engine Cooling | Liquid |
| Fuel System | EFI |
| Starting System | Electric Start |
Chassis
| Front Suspension | Independent Double A-Arm |
| Front Travel | 7 in. (180 mm) |
| Front Brake Type | Dual Hydraulic Disc |
| Front Tires | At24X8-12 (Kenda) |
| Rear Travel | 7 in. (180 mm) |
| Rear Suspension | Independent Double A-Arm |
| Rear Brake Type | Hydraulic Disc |
| Rear Tires | At24X10-12 (Kenda) |
Dimensions/Capacities
| Dry Weight | 604.0 lb. (274 kg) |
| Front Rack Capacity | 120 lb. (54.5 kg) |
| Rear Rack Capacity | 240 lb. (109 kg) |
| Towing Capacity | 1,050 lb. (477 kg) |
| Fuel Capacity | 4.7 gal. (17.8 L) |
| Ground Clearance | 10.5 in. (267 mm) |
| Machine Dimensions (LxWxH) | 83.6 in. (2,123 mm) x 43.4 in. (1,102 mm) x 46.9 in. (1,191 mm) x 33.2 in. (843 mm) |
| Wheelbase | 47.9 in. (1,217 mm) |
Drive Train
| Drive Train | 2WD/ 4WD /Lock |
| Final Drive | Shaft Drive |
| Transmission | CVT Automatic |
General
| Lighting | Dual 8W High/Low Beam, Single With Brake Light |
| Colors | Red or Green |
